18V F-RAPIDFIRE 10Ga 30º-34º Framing Nailer Skin

A18F10FN0

I/N: 0298398
$ 699.00
Add/Remove Wishlist
I'd like to enquire about this product. 1 x 18V F-RAPIDFIRE 10Ga 30º-34º Framing Nailer Skin | A18F10FN0

Price correct as of 9th April 2024, 01:30am.

This page is for product information only and item/s may be unavailable for purchase, contact your local Bunnings store for availability/price.

AEG has revolutionised framing nailers by engineering the 18V F-RAPIDFIRE 10Ga 30-34 Degree Framing Nailer. No gas cartridges, no pneumatic hoses and no waiting to ramp up & fires 3 nails per second in bumpfire mode.

The powerful FUSION brushless motor provides maxium firing efficiencies with up to 1,000 shots per charge (on a fully charged 6.0Ah battery).

The secret behind AEG's success is a refillable compressed air canister (which only needs boosting every 20,000 nails or so).

The magazine holds 67 nails and fires 50-90mm paper collated nails either in full sequential mode (trigger) or contact actuation mode (bumpfire).

Recharging is easy, simply connect to any portable high pressure inflator and pressurise to 125 PSI.

No costly cartridges to keep purchasing, no compressor and hoses to drag around - it's a no-brainer.

The nailer has a dryfire lockout feature that reduces jams and dry shots.

It comes with a rafter hook and belt clip to enable you to keep it close by at all times your onsite.

Being an 18V tool, it runs off the same batteries that power more than 80 tools in the range.

**Battery and Charger sold separately**

  • default feature icon

    Powerful F-RAPIDFIRE Brushless Motor - maximum power and firing efficiency.

  • default feature icon

    Innovative Air Drive Spring Technology - zero ramp up time.

  • default feature icon

    The tool-free depth adjustment

  • default feature icon

    Onboard Jam Wrench Storage

  • default feature icon

    rafter hook (built-in) and belt hook

  • default feature icon

    Drives Up To 1,000 Nails Per Charge

  • default feature icon

    An extended nail magazine available for separate purchase

  • default feature icon

    Refillable Canister

  • default feature icon

    Dry Fire Lockout

  • default feature icon

    LED Feedback

AEG FRAMING NAILER_HERO_2000X2000 02 SKIN.png preview

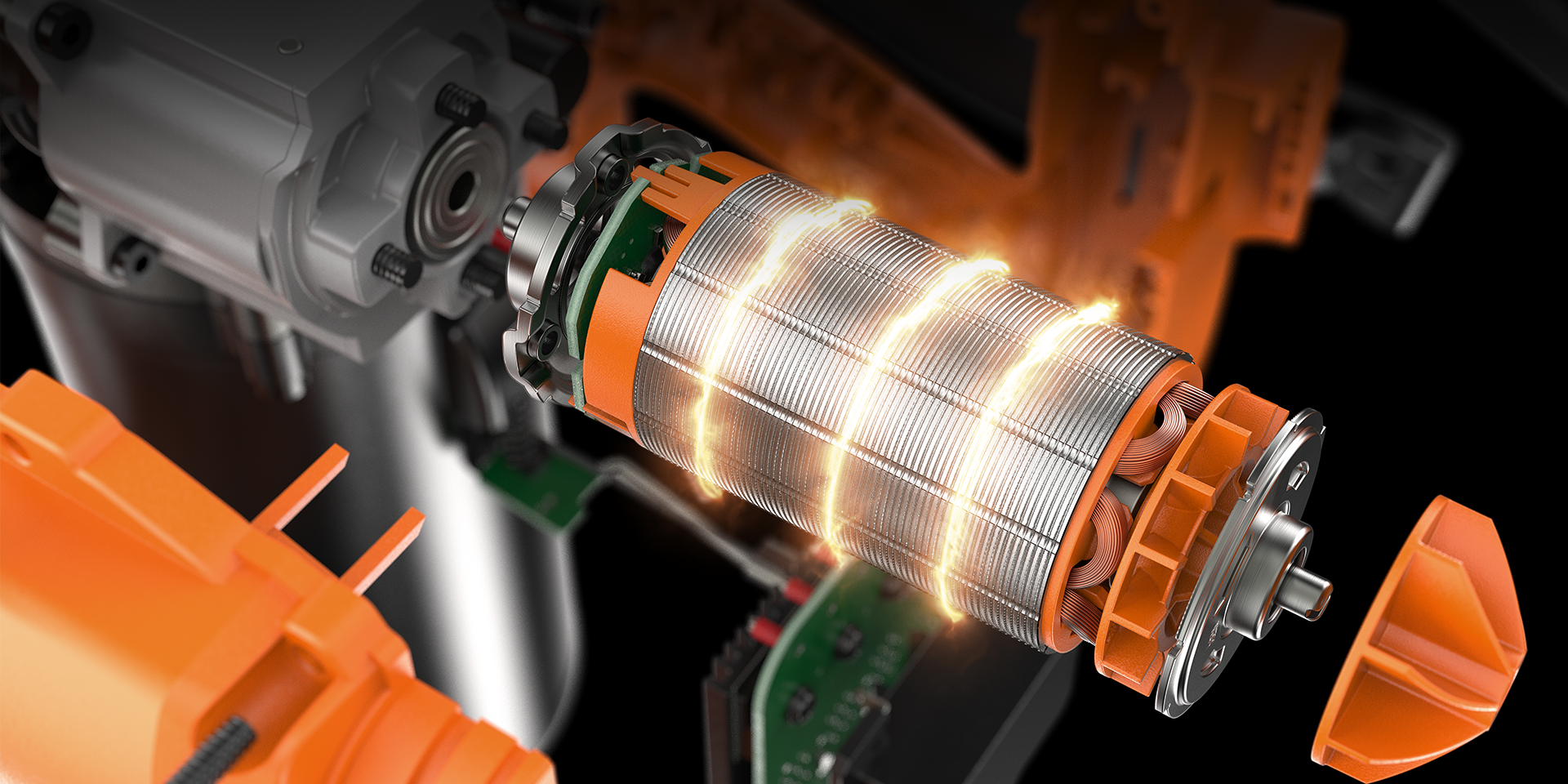

POWERFUL F-RAPIDFIRE MOTOR

POWERFUL F-RAPIDFIRE MOTOR

Adding to the FUSION range of tools, the powerful F-RAPIDFIRE Brushless Motor provides maximum power and firing efficiencies. Being a FUSION tool, it’ll talk to your connected FORCE battery, giving you pneumatic performance in a cordless 18V system.

Default alternative text

INNOVATIVE AIR DRIVE SPRING TECHNOLOGY

AEG’s powerful and innovative Air Drive Spring Technology provides the reliability and force needed to fire up to 3 nails per second in bumpfire mode, with zero ramp up time and without any of the hassles associated with hoses and bulky compressors.

DRY FIRE LOCKOUT

DRY FIRE LOCKOUT

Engineered to reduce jams and dry shots, another way the F-RAPIDFIRE Framing Nailer saves you time on the job.

Default alternative text

REFILLABLE CANISTER

After shooting 20-30 thousand nails, you might experience a slight loss in pressure. No issues. The refillable tank can be pressurised onsite, with any portable high pressure inflator or compressor. Just set to 125 PSI and you’re good to go.

LED FEEDBACK

LED FEEDBACK

The LED panel on the tool alerts users to jams, dry fires and empty nail magazine.

Tool Free Adjustable Countersink

Tool Free Adjustable Countersink

The tool-free depth adjustment means you can choose how far to countersink nails, or adjust the setting to leave them ‘proud’ for easier removable in temporary construction.

Default alternative text

DRIVES UP TO 1,000 NAILS PER CHARGE

The combination of the innovative FUSION Brushless Motor, Air Drive Spring Technology and connected FORCE battery, provides maximum power and firing efficiencies to enable you to get up to 1,000 shots out of a fully charged 6.0Ah battery.

    What's Included Description

    whats included default image thumbnail
    No Mar Tip
    1
    18V F-RAPIDFIRE 30º-34º Framing Nailer  (A18F10FN0) thumbnail
    18V F-RAPIDFIRE 30º-34º Framing Nailer (A18F10FN0)
    (A18F10FN0)
    1
    Heavy Duty Carry Case thumbnail
    Heavy Duty Carry Case
    (AEGBMC01)
    1
    Belt Hook thumbnail
    Belt Hook
    (659358002)
    1
    Manual thumbnail
    Manual
    (M2024)
    1
    Voltage
    Voltage
    18V
    Fastener Length
    Fastener Length
    50 /90mm
    Bump Fire Rate
    Bump Fire Rate
    3 NailsSecond
    Fastener Collation angle
    Fastener Collation angle
    10GA Framing Nail – 30 - 34° Angled
    Capacity
    Capacity
    67
    Weight
    Weight
    4.2Kg
